Display size	7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)
Display resolution	800 x 480 pixels
Physical dimensions	13.8" × 12.2" × 13.0" (35 × 31 × 33 cm)
Receiver	5 Hz
	IPX7
Weight	19.4 lb (8.8 kg)
Display type	WVGA display
Antenna	Internal or external over NMEA 2000

Routes	100
Track log	50,000 points; 50 saved tracks
Preloaded maps	LakeVü g3 (inland maps)
Accepts data cards	1 microSD™ card; 32 GB maximum card size

ECHOMAP™ UHD

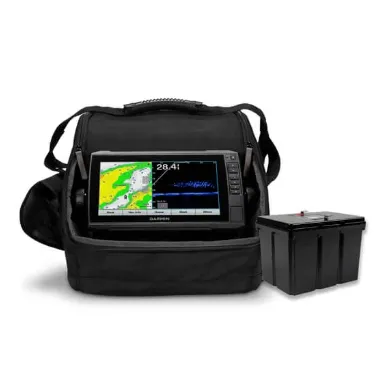

Revolutionary real-time sonar pairs with a large ECHOMAP UHD 93sv combo touchscreen display, allowing you to see up to 200’ in any direction.

TWO MODES, ONE TRANSDUCER

Adapt your fishing technique with a Panoptix LiveScope system, which offers 2 scanning sonar modes. The bundle also includes a lithium battery, charger and swivel pole mount.

LIVESCOPE FORWARD

LiveScope Forward sonar shows up to 200’ all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.

LIVESCOPE DOWN

LiveScope Down sonar shows moving sonar images of what is below the ice, so you can watch fish respond to your jig.

LAKEVÜ G3 MAPS

The unit comes preloaded with LakeVü g3 maps with integrated Navionics^® data, covering more than 18,000 lakes in the U.S.

BUILT-IN FLASHER

The built-in flasher provides accurate jig and fish detection as they swim into the sonar beam.

CUSTOM COMBOS

You can create custom pages that combine Panoptix^™ sonar, flasher and map on your display.

LITHIUM BATTERY

Fish even longer with a lightweight lithium battery that won’t weigh you down on the ice.

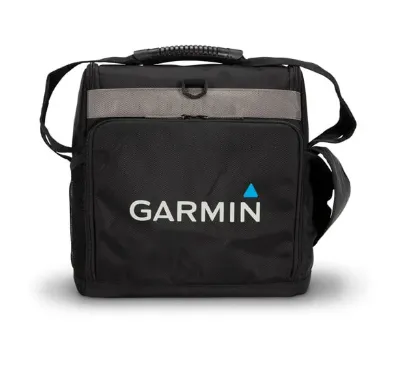

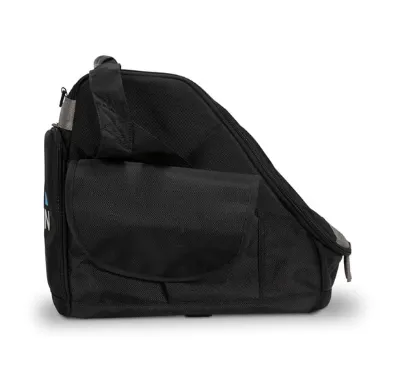

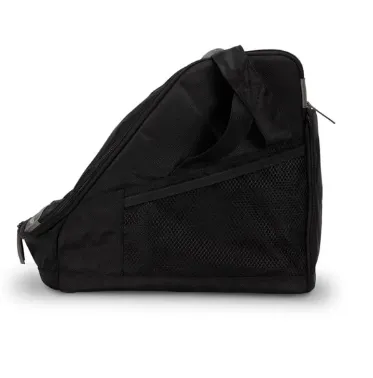

CARRYING CASE

Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.
